Basic Parameters of the Unit
●The equipment adopts an integrated coupling structure.
●The base is made of high-strength steel.
●The engine, generator, and base are equipped with vibration isolation devices to ensure stable operation.
●Equipped with a silencer, corrugated pipe, and shock absorbers to ensure stable power output from the unit.
●Equipped with a continuous operation daily fuel tank, and the starting battery is automatically charged during operation.
Unit Technical Parameters
●Rated Voltage: 400/230V (Other voltages available upon request)
●Rated Frequency: 50Hz (60Hz available upon request)
●Rated Speed: 1500RPM (1800RPM available upon request)
●Power Factor: PF=0.8
●Protection Functions: High water temperature, low oil pressure, overspeed, overload, short circuit
Electrical Performance Parameters
●Voltage Fluctuation Rate: ≤ ±1%
●Frequency Fluctuation Rate: ≤ ±0.5%
●Waveform Distortion Rate: ≤ 5%
●Recovery Stabilization Time: Voltage ≤ 4 sec / Frequency ≤ 6 sec
●Voltage Regulation Rate: Steady state ≤ ±1% / Transient ≤ +20% ~ -15%
●Frequency Regulation Rate: Steady state ≤ ±0.5% / Transient ≤ ±10%

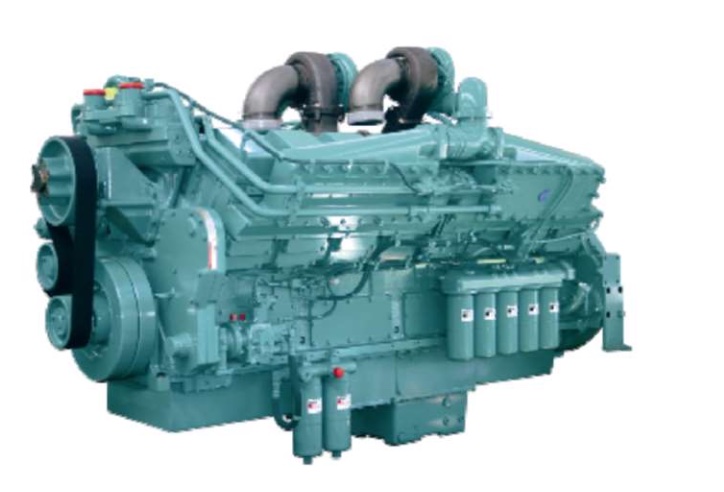

Diesel Genset
Arrangement Type: L-type or V-type
Intake Method: Naturally aspirated or turbocharged
Cooling Method: Fixed radiator cooling or cooling tower cooling
Speed Regulation Method: Electronic governor or electronic fuel injection (common rail)
Starting Method: DC12V or 24V, battery start
Filtration System: Replaceable oil, diesel, water, and air filters
Fuel Type: National standard diesel
Lubricating Oil Type: SAE 15-40W / API CH-4
AC Generator
Arrangement Type: L-type or V-type
Intake Method: Naturally aspirated or turbocharged
Cooling Method: Fixed radiator cooling or cooling tower cooling
Speed Regulation: Electronic governor or electronic fuel injection (common rail)
Starting Method: DC 12V or 24V, battery start
Filtration System: Replaceable oil, diesel, water, and air filters
Fuel Type: National standard diesel
Lubricating Oil Type: SAE 15-40W / API CH-4

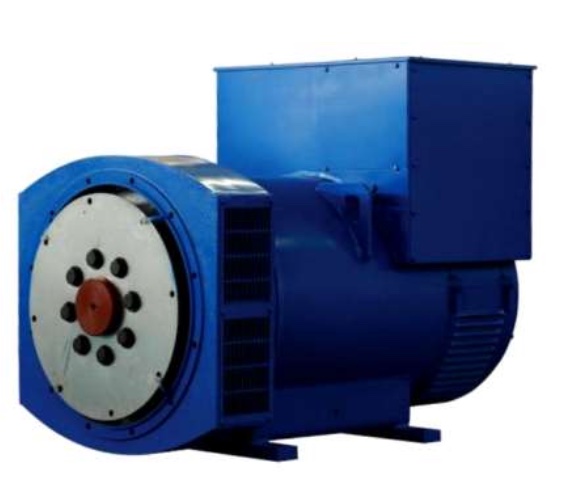

AC Generator:
Type: Synchronous AC generator
Structure: Drip-proof design
Voltage Regulation Device: AVR (Automatic Voltage Regulator) for stable voltage adjustment
Excitation Method: Brushless self-excited
Connection Type: Three-phase four-wire, Y-type winding
Insulation Grade: H-class
Protection Level: IP22

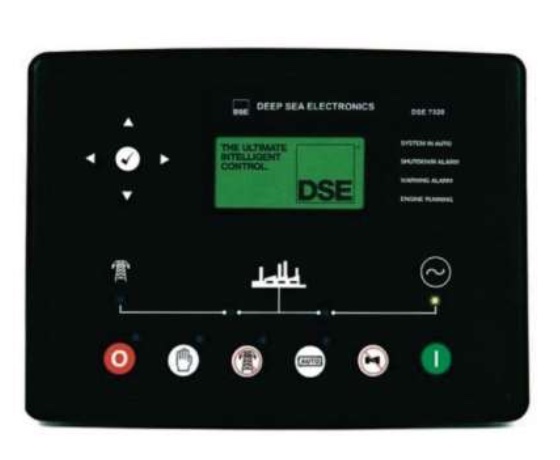

Control System
Display Type: LCD and LCD display
Operating Mode: Automatic or manual
Buttons: Auto, manual, disconnect; start, emergency stop, reset
Displayed Data: Three-phase generator voltage, three-phase generator current, generator frequency, unit operating speed, engine oil pressure, generator coolant temperature, battery voltage, unit operating time
Alarm Protection: High coolant temperature, low oil pressure, overspeed, low speed, overcurrent, over/under voltage, overload, battery voltage over/under, startup failu
Optional Accessories for the Generator Set
●Semi-Automatic or Fully Automatic Intelligent Monitoring System
●A.T.S. (Automatic Transfer Switch)
●Power Output Circuit Breaker
●Soundproof, Weatherproof, or Container-Type Generator Enclosure
●Exhaust Purification System
●Two-Wheel or Four-Wheel Trailer Type
●Heat Exchanger or Separated Water Tank Cooling System
